Insulin Needle Packing Machine

This machine is for Vinyl packing with insulin needle by 10pc.

It automatically out put after inspecting upper-cap assemble and under-cap assemble.

Marked date and gauge etc as hot print adopted and QR code is possible as well.

- (DIMENSION) : 5,300(L) x 1,900(W) x 2,200(H)

 - (CAPACITY) : 20,000 ~ 22,000 EA/HR

- (WEIGHT) : ABOUT 1,800 KGS

- (ELECTRIC POWER) : AC 1P x 220V x 5.5 KWW x50/60HZ

- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM - (FRAME MATERIAL) : AL PROFILE , SUS 304

- (SUPPLY) : NON VIBRATION FEEDER - (NO.OF WAKER) : 1 PERSON

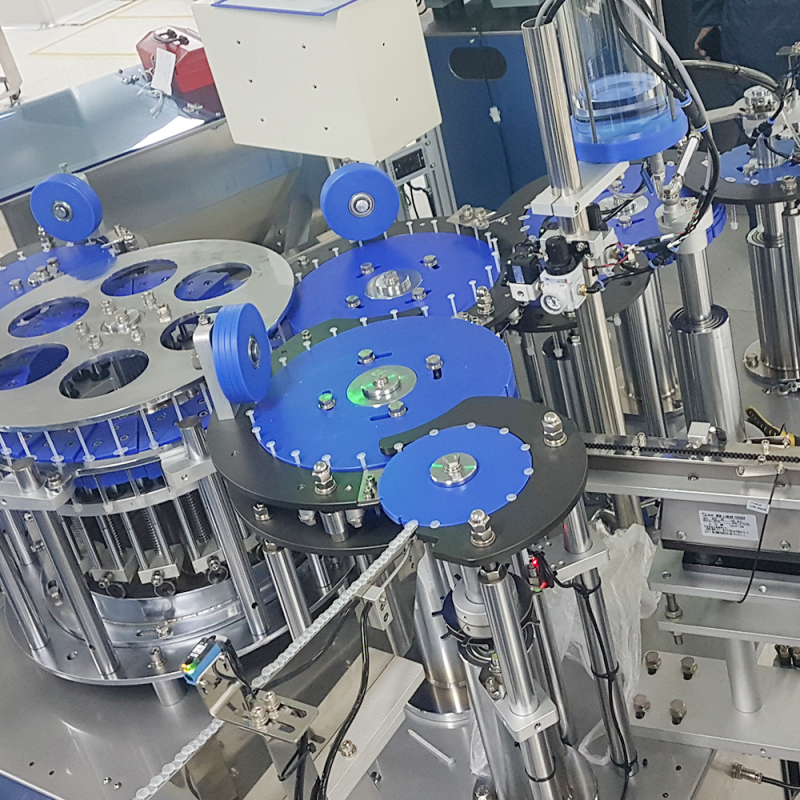

Insulin Needle Assembly Machine

This machine is for assembly Insulin needle and double usage is possible as chosen with size 0.3cc, 0.5cc and 1cc.

Vision camera inspection : Point check 1unit , Bonding 2units (Bending) , Gasket check 1unit and 2units for checking after upper cap assembly

- (DIMENSION) :11,000(L) x 6,000(W) x 1,800(H)

- (CAPACITY) : 23,000 - 25,000 EA/HR

- (CONTROL SPEC) : L.S PLC

- (ELECTRIC POWER) : AC 3P x 380V x 22 KW x50/60HZ

- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM - (FRAME MATERIAL) : AL PROFILE , SUS 304

- (NO.OF WAKER) : 2-3 PERSON
